11th April 2025 at 08:54 - Damian
Not totally travel-related.
Our 30A DC-DC converter that charges the LiFePO4 battery from the alternator was getting too hot. Fortunately we didn't need it with the solar over the last summer.
I've mounted a computer fan behind the heat sink along with a 50°C thermal switch and it works perfectly!
It took 20 mins of charging to get from 20°C to 50°C, the fan came on and cooled it back to 35°C in 90 seconds. It takes around 10 mins to climb back again. Rinse, repeat.
🤓

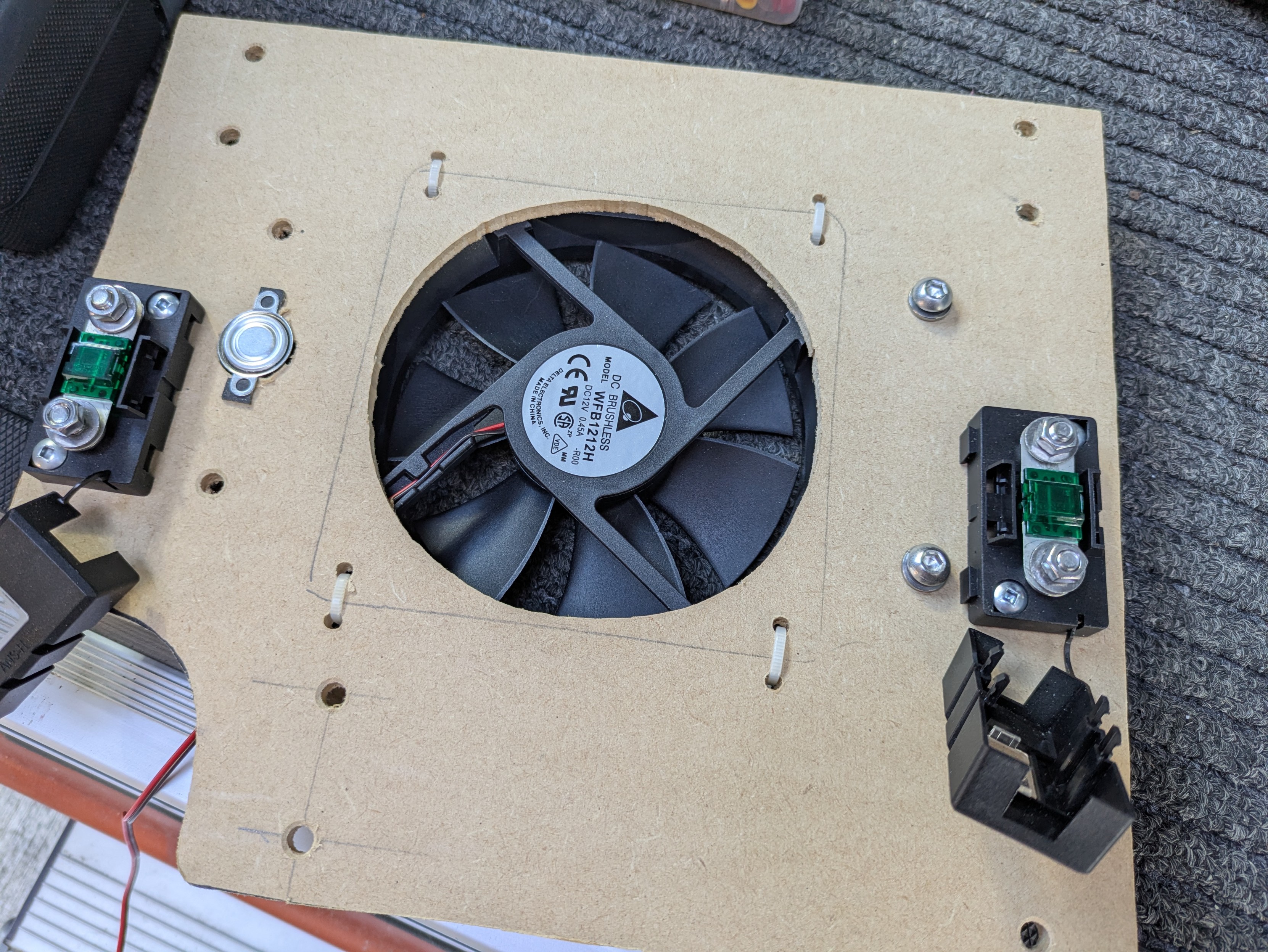

The board that the converter mounts to with the fan behind. The metallic round thing on the left is the 50°C thermal switch. It touches the surface of the heat sink and I smeared a bit of thermal paste on it before mounting.

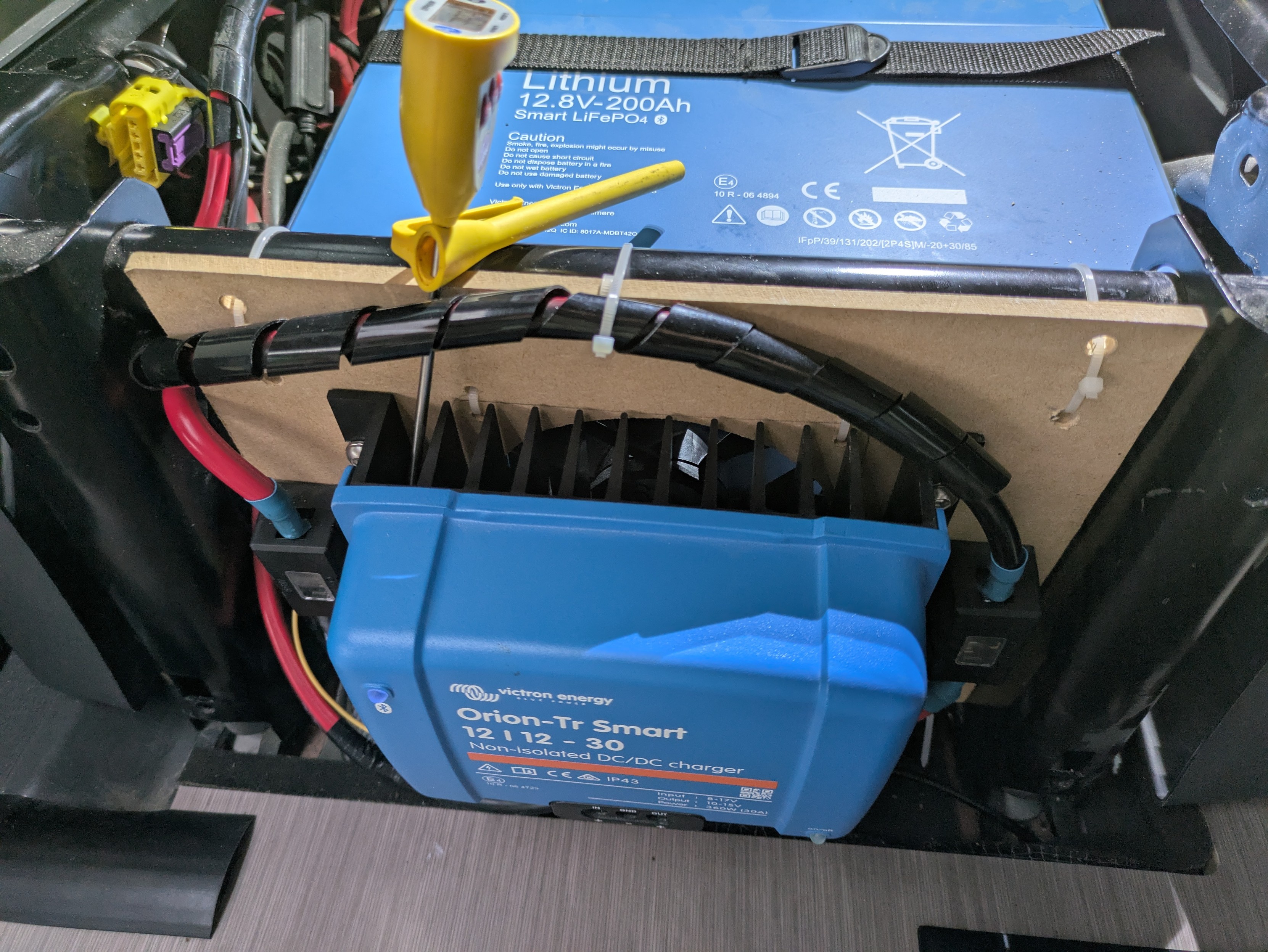

Testing in place with the passenger seat removed. The yellow thing is a temperature probe for me to monitor

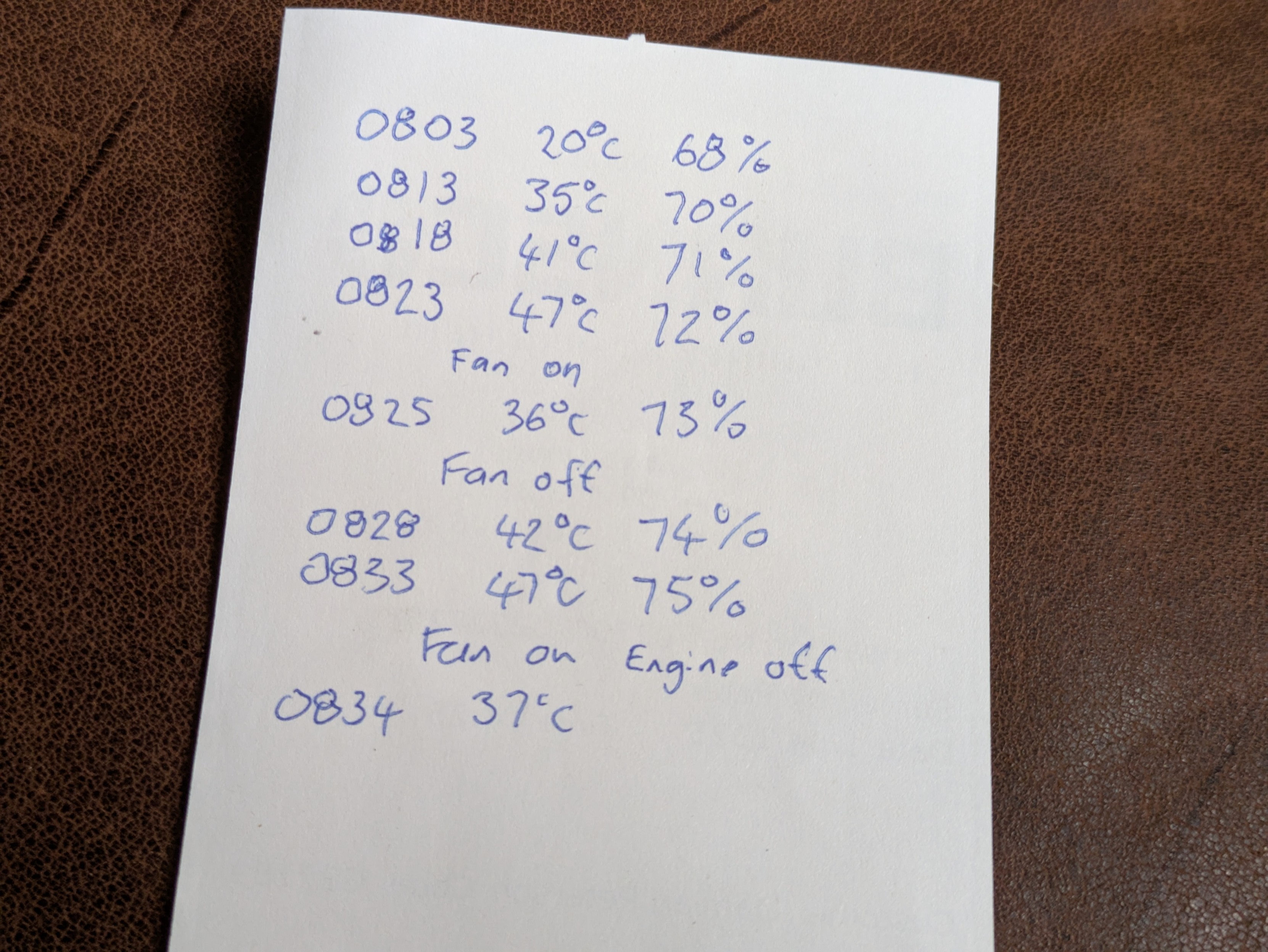

My notes of the timings, temperatures and battery charge level. I left the van fridge on overnight with the door open to drain the battery a bit for the test.
